DOMS pages

Orders

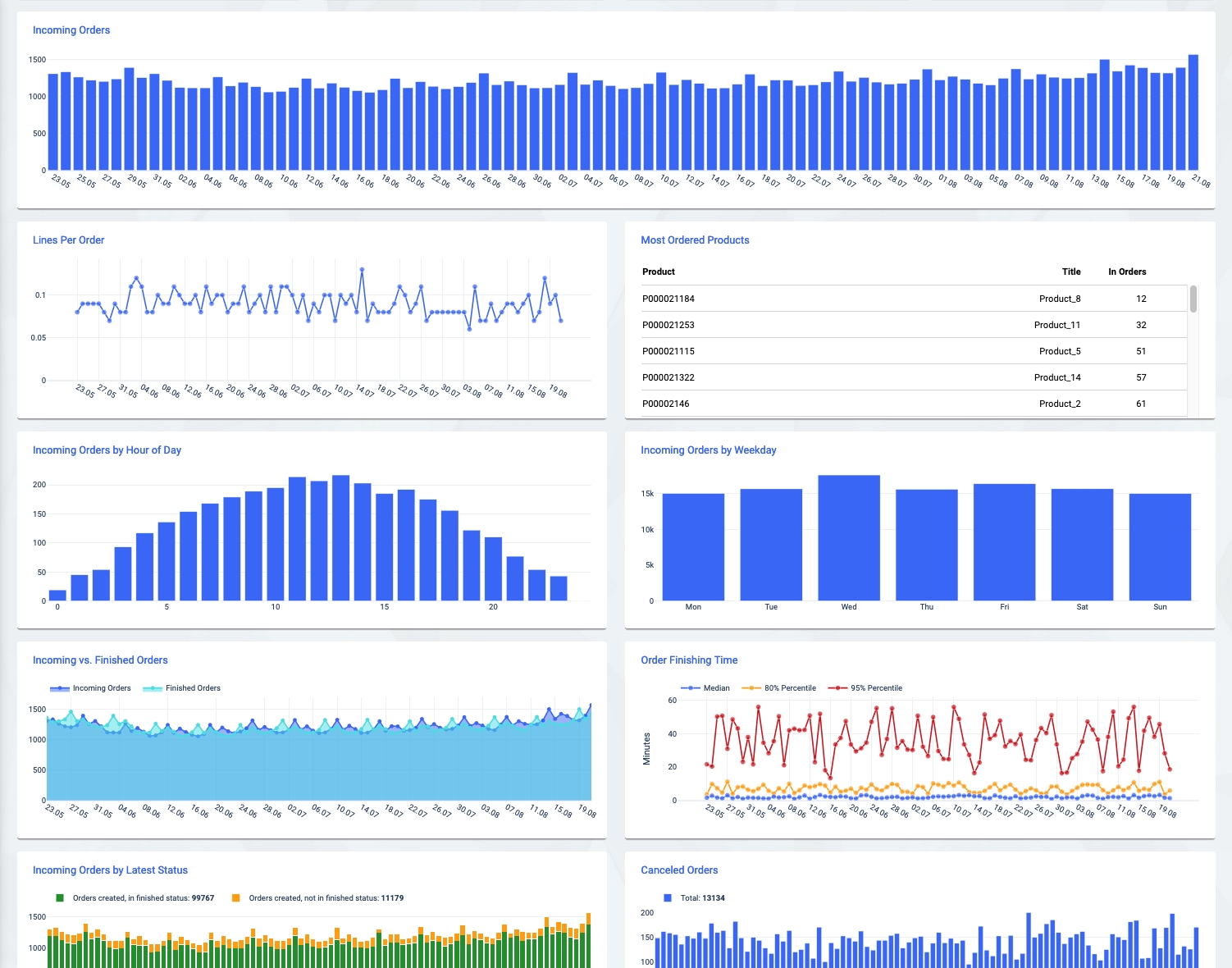

This page contains various data about orders, including order time, status, and line items. As this information exists independently of the routing of the orders, there are no references to facilities here.

Incoming orders

The number of incoming or created orders is displayed in different ways (total, by date, by time of day, by day of the week). The relevant time used here is the orderDate as set by the upstream system, not the time the order entity was created in the fulfillmenttools platform.

Finished orders and order finishing time

Orders are considered finished when the status of the underlying process is set to FINISHED. The finishing time is the period of time between the creation of the order and the time the order is considered finished.

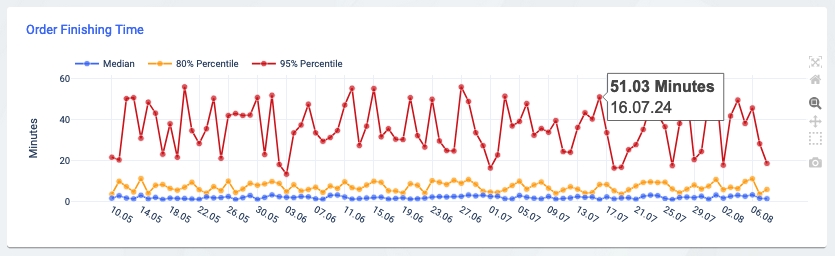

The chart below shows three quantiles of the finishing time by date. This allows for the assessment of both the typical and the more extreme times. In this example, about 5% of orders that finished on July 16 took more than 51 minutes to finish.

The arithmetic mean is not given here as experience has shown that rare but often unavoidable outliers in process times strongly distort the mean value and lead to incorrect impressions.

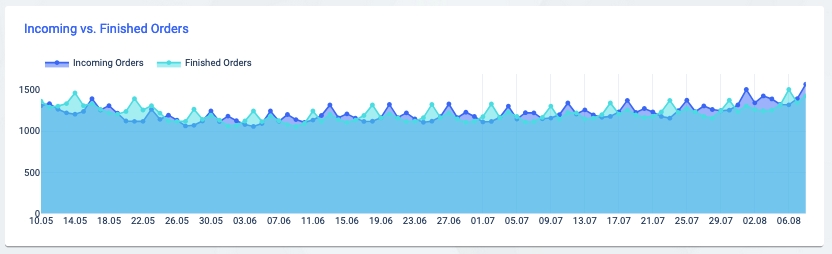

Incoming and finished orders are shown here in direct comparison to display how order processing correlates with the incoming order volume.

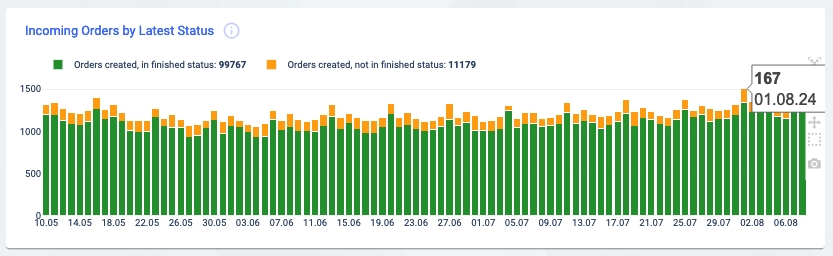

This chart shows the orders by the date they were created, separated by their current status. This helps identify older orders that have not yet been finished. In this example, 167 of the orders created on August 1 have not been finished yet.

Lines per order

This is the average number of order lines per order for orders that were created within the selected time span or on a specific date. This value is shown both in total and by date.

Most ordered products

The table lists the products that were present in the most orders created within the selected time span.

Canceled orders

This chart shows the number of orders that were canceled per day using the REST API for order actions or the Backoffice.

Orders by service type

This graph shows what proportion of the created orders are click-and-collect orders or ship-from-store orders.

Routing

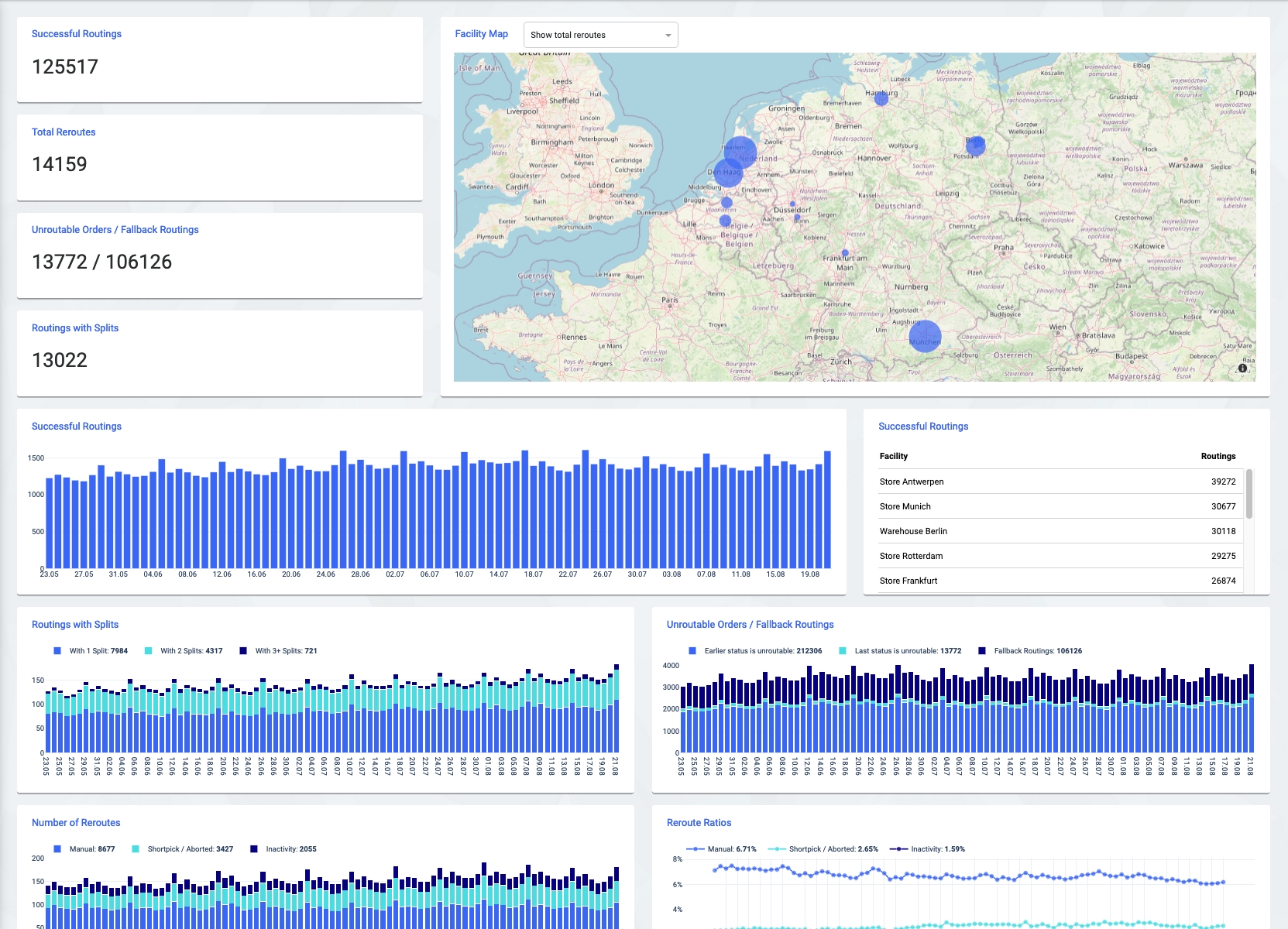

Here you will find routing-related figures and key performance indicators (KPIs) such as the number of successful routings, re-routes, and order splits, displayed both by date and by location. The dropdown menu allows viewing some of these values as a scatter plot on the map.

Successful routings

A routing is counted as successful if an assignment to a location has taken place. Due to reroutes and order splits, an order can lead to several (successful) routings.

Usually, a pick job is also generated in each case. An exception to this are locked orders, where a pick job is only created after unlocking.

Reroutes

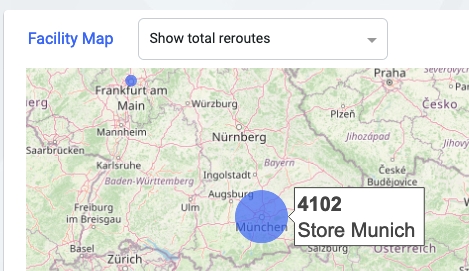

The number of reroutes is listed separately by reason: shortpick, inactivity, and manual. The facility assigned to a reroute corresponds to the facility from which it is routed away, not the one to which it may subsequently be routed. For example, in the picture below 4102 tasks have been removed from the Munich store and routed elsewhere.

If a picking task is aborted and rerouted as a result, this also leads to an entry under shortpick. A manual reroute can occur both when an individual task or the entire order is reassigned manually. Even if an order is automatically routed again after a reset of the entire process, this is counted as a manual reroute.

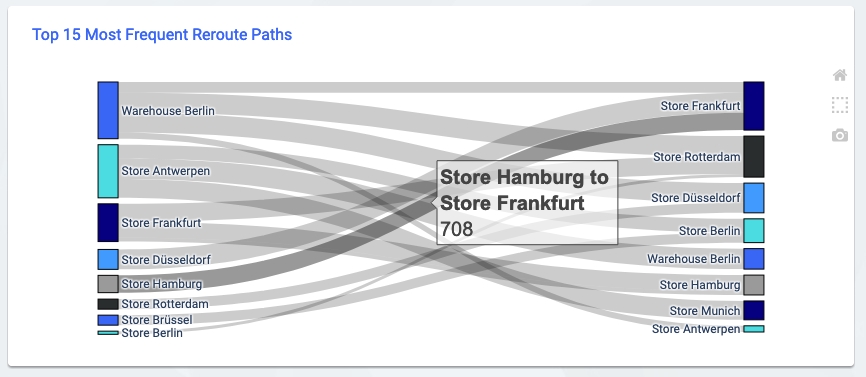

In addition to the source location, the chart below also shows the target location of reroutes, together with the associated frequency. In this example, 708 tasks were routed from Hamburg to Frankfurt.

If an order split occurs during the reroute, it is not clear which target facility should be displayed. In this case, only the first facility that was used during the routing is counted as the target facility.

Reroute ratios

A common question is what proportion of routings are later rerouted. However, since these events can happen on different days, this KPI cannot be calculated against a selected time period.

For this reason, a different definition is used that answers the question of what proportion of finished tasks in a facility ended with a reroute. For example, the manual reroute ratio is calculated as follows:

manual_reroute_ratio = number_of_manual_reroutes / (total_number_of_reroutes + number_of_pickjobs_finishing_any_other_way)

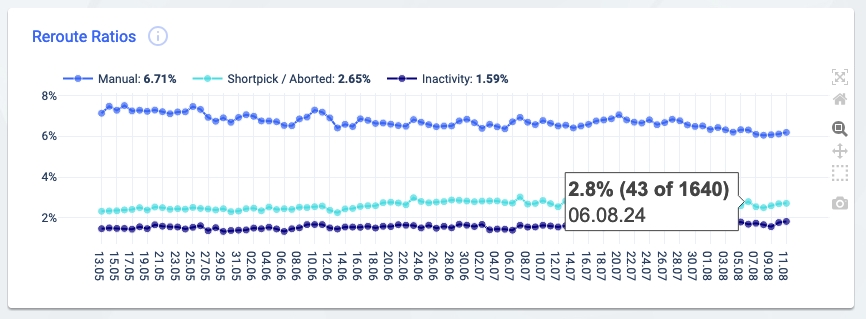

The denominator has two parts because a reroute can occur before a pick job is created. In the chart below, 1640 tasks were finished in some way on August 6, 43 of them with a reroute by shortpick. This corresponds to a ratio of 2.8%.

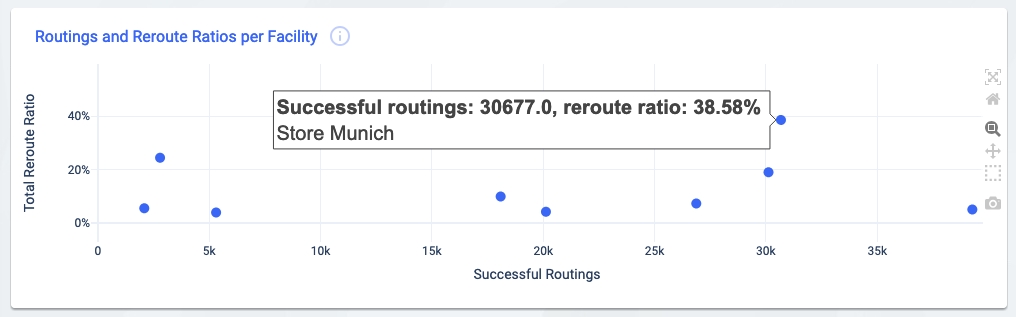

A high reroute ratio is less significant if the total number of routings to the location is low. For this reason, both values are also plotted against each other in a scatter plot, with each point representing a location. Data points in the top right-hand corner require attention, as they indicate facilities with both a high number of routings and a high reroute ratio. In the example, this applies to Munich.

Unroutable orders and fallback routings

A definition of these terms can be found here. The number of non-routable orders and fallback routings are shown both in total and by date. In the case of order splits or if an order generates several failed or fallback routings, several entries per order can arise.

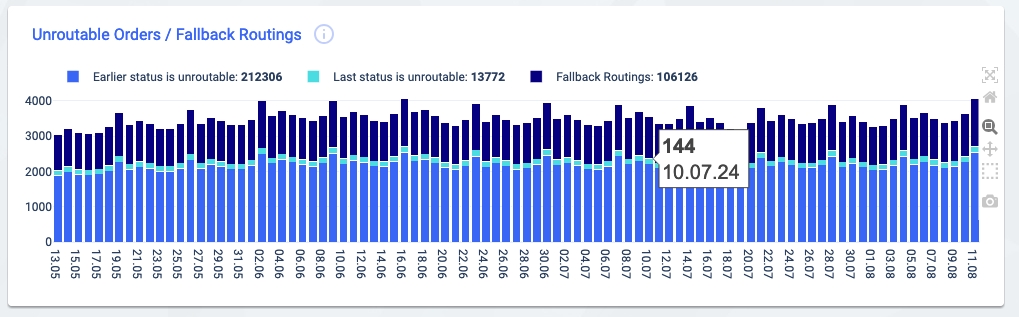

Since it makes a difference whether orders were only temporarily or permanently unroutable, this is displayed separately. In the example below, there were about 2000 routings on July 10 that went into the unroutable status, but only 144 remained in it ("Last status is unroutable") while the rest changed their status subsequently to something else ("Earlier status is unroutable").

Order splits

The occurrence of order splits is shown separately according to how many parts an order is split into. 1 split means a split into two parts.

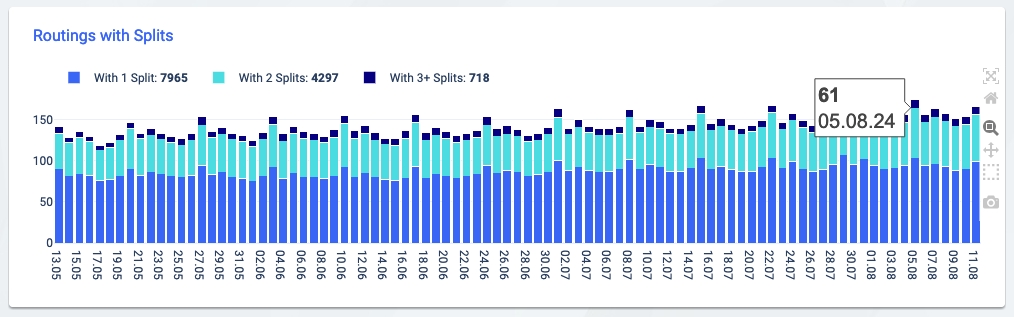

In the following chart, each order leads to a single entry. Here, on August 5, there were 61 routings of orders that led to exactly 2 splits (3 parts). Only routings that have not been rerouted are taken into account. This means that if there was initially a split, but not after a reroute of the entire order, no split is counted for this order.

Completely picked pick jobs

The routing should assign an order to a location where it can be fulfilled in the best possible way. For this reason, the completely picked pick jobs metric indicates the proportion of incoming tasks that lead to a successfully closed and fully picked pick job. More precisely, analogous to the calculation of the reroute ratios:

completely_picked_pickjobs(ratio) = closed_and_completely_picked_pick_jobs / (total_number_of_reroutes + number_of_pickjobs_finishing_any_other_way)

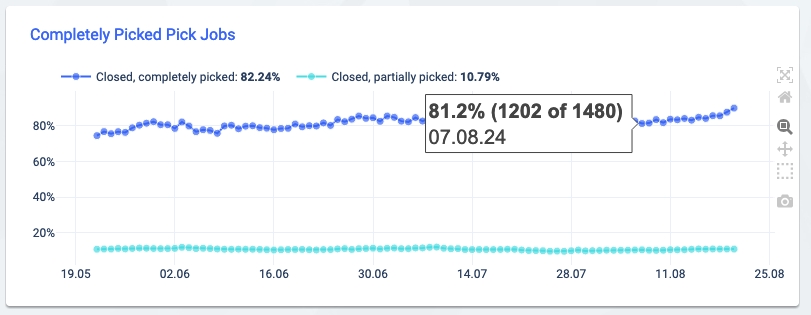

In addition, the percentage of successfully closed but only partially picked pick jobs is also shown in the graphic below. In this example, 1202 pick jobs were completely picked on August 7, while 1480 tasks ended in some way overall.
