External actions

More external actions API information can be found here: REST API documentation – External actions

The external actions feature empowers users to trigger and execute actions and processes in external systems, outside of fulfillmenttools.

• Multiple external actions can be added to a process

• External actions can be grouped and assigned to a theme

Create an external action with type LINK

This example adds a link to a payment provider:

POST https://{YOUR_TENANT_NAME}.api.fulfillmenttools.com/api/externalactions

{
  "processRef": "PROCESS-REF-TO_WHICH_THE_ACTION_SHOULD_REFER",
  "nameLocalized": {
    "en": "Zahlungen anpassen",
    "de": "Adjust Payment"
  },
  "groups": [
    "string"
  ],
  "action": {
    "type": "BLANK_LINK",
    "linkUrl": "yourpaymentprovider.com/xyz..."
  }
}

Create an external action with type FORM

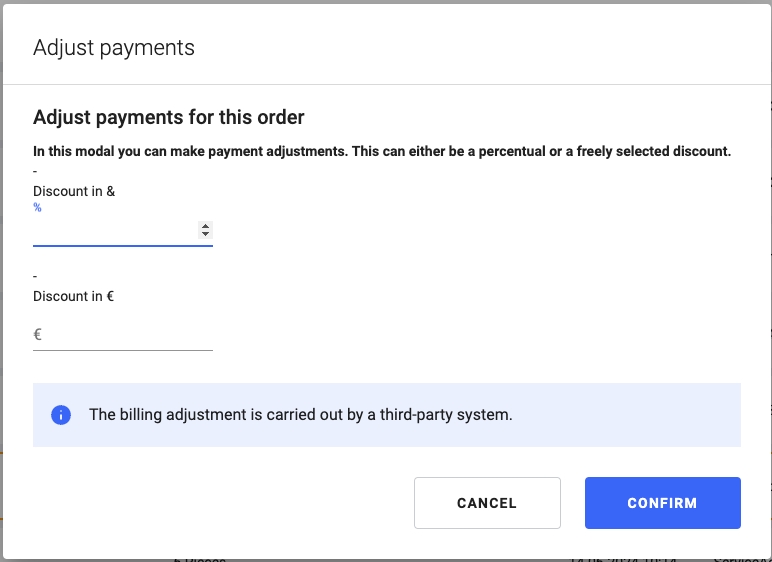

This example adds a form that will look like this and is able to inform a payment provider system:

POST https://{YOUR_TENANT_NAME}.api.fulfillmenttools.com/api/externalactions

{
  "processRef": "6aca1c80-c418-4064-b173-63fb120aef2d",
  "groups": [
    "Trainingsgruppe B"
  ],
  "nameLocalized": {
    "de_DE": "Zahlungen anpassen",
    "en_US": "Adjust payments"
  },
  "action": {
    "type": "FORM",
    "elements": [
      {
        "elementType": "HEADLINE",
        "title": "Adjust payments for this order",
        "titleLocalized": {
          "de_DE": "Zahlungen zu dieser Bestellung anpassen",
          "en_US": "Adjust payments for this order"
        }
      }, {
        "elementType": "SUBHEADLINE",
        "title": "In this modal you can make payment adjustments. This can either be a percentual or a freely selected discount.",
        "titleLocalized": {
          "de_DE": "In diesem Modal können Sie Zahlungsanpassugen vornehmen. Dies kann entweder ein prozentualer oder ein frei gewählter Rabatt sein.",
          "en_US": "In this modal you can make payment adjustments. This can either be a percentual or a freely selected discount."
        }
      }, {
        "elementType": "TEXT",
        "style": "BODY",
        "title": "string",
        "titleLocalized": {
          "de_DE": "-",
          "en_US": "-"
        }
      }, {
        "elementType": "TEXT",
        "style": "BODY",
        "title": "string",
        "titleLocalized": {
          "de_DE": "Rabatt in %",
          "en_US": "Discount in &"
        }
      }, {
        "elementType": "TEXT_INPUT",
        "elementId": "4712",
        "label": "string",
        "titleLocalized": {
          "de_DE": "%",
          "en_US": "%"
        },
        "isMandatory": false,
        "validation": {
          "validationType": "FLOAT",
          "minValue": 1,
          "maxValue": 100
        }
      }, {
        "elementType": "TEXT",
        "style": "BODY",
        "title": "string",
        "titleLocalized": {
          "de_DE": "-",
          "en_US": "-"
        }
      }, {
        "elementType": "TEXT",
        "style": "BODY",
        "title": "string",
        "titleLocalized": {
          "de_DE": "Rabatt in €",
          "en_US": "Discount in €"
        }
      }, {
        "elementType": "TEXT_INPUT",
        "elementId": "4713",
        "label": "string",
        "titleLocalized": {
          "de_DE": "€",
          "en_US": "€"
        },
        "isMandatory": false,
        "validation": {
          "validationType": "INTEGER",
          "minValue": 1,
          "maxValue": 1000
        }
      }, {
        "elementType": "TEXT",
        "style": "INFO",
        "title": "string",
        "titleLocalized": {
          "de_DE": "Die Anpassung der Abrechnung wird durch ein Fremdsystem durchgeführt.",
          "en_US": "The billing adjustment is carried out by a third-party system."
        }
      }
    ],
    "success": {
      "label": "string",
      "labelLocalized": {
        "de_DE": "Bestätigen",
        "en_US": "CONFIRM"
      }
    },
    "cancel": {
      "label": "string",
      "labelLocalized": {
        "de_DE": "Abbrechen",
        "en_US": "CANCEL"
      }
    }
  }
}

Add information to a process and relate it to another action

First, an external action with type COMMENT is added to an existing order. This enables users to add general information to the order.

POST https://{YOUR_TENANT_NAME}.api.fulfillmenttools.com/api/externalactions

{
  "processRef": "PUT-IN-A-PROCESS-ID",
  "nameLocalized": {
    "de_DE": "Zusatzinformation Kunde",
    "en_US": "Additional customer information",
  },
  "groups": [
    "Additional information"
  ],
  "action": {
    "type": "COMMENT"
  }
}

After that, the actual information can be added with the following call:

POST https://{YOUR_TENANT_NAME}.api.fulfillmenttools.com/api/externalactions/externalActionRef/logs

{
  "requiresAnonymization": false,
    "actionPayload": {
    "comment": "Consumer seqment A - high priority",
    "externalActionRef":"optional-ref"
  }
}
