# Configure Microsoft Entra ID/Azure Active Directory
In this article, we'll take you through how to connect fulfillmenttools with Microsoft Entra ID.
{% hint style="success" %}
#### Prerequisites
* Adminstrator role in Microsoft Entra
* Logged into the [Microsoft Entra admin center](https://entra.microsoft.com/)
* Administrator role in a fulfillmenttools tenant
{% endhint %}
## **Create app registration**
{% stepper %}
{% step %}
**Start the app registration**

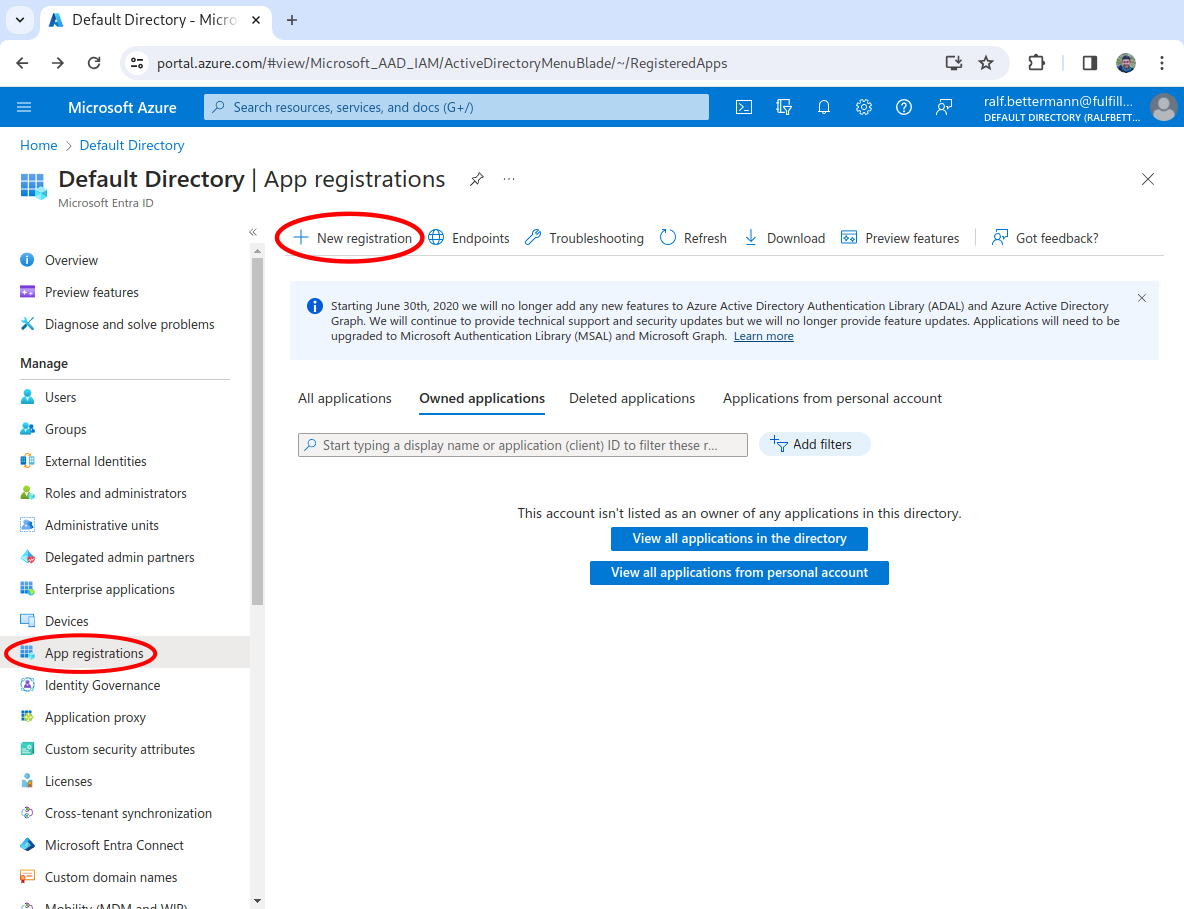

In the left-hand navigation, select **App registrations**, then click **New registration**. This will open app configuration wizard.
{% endstep %}
{% step %}

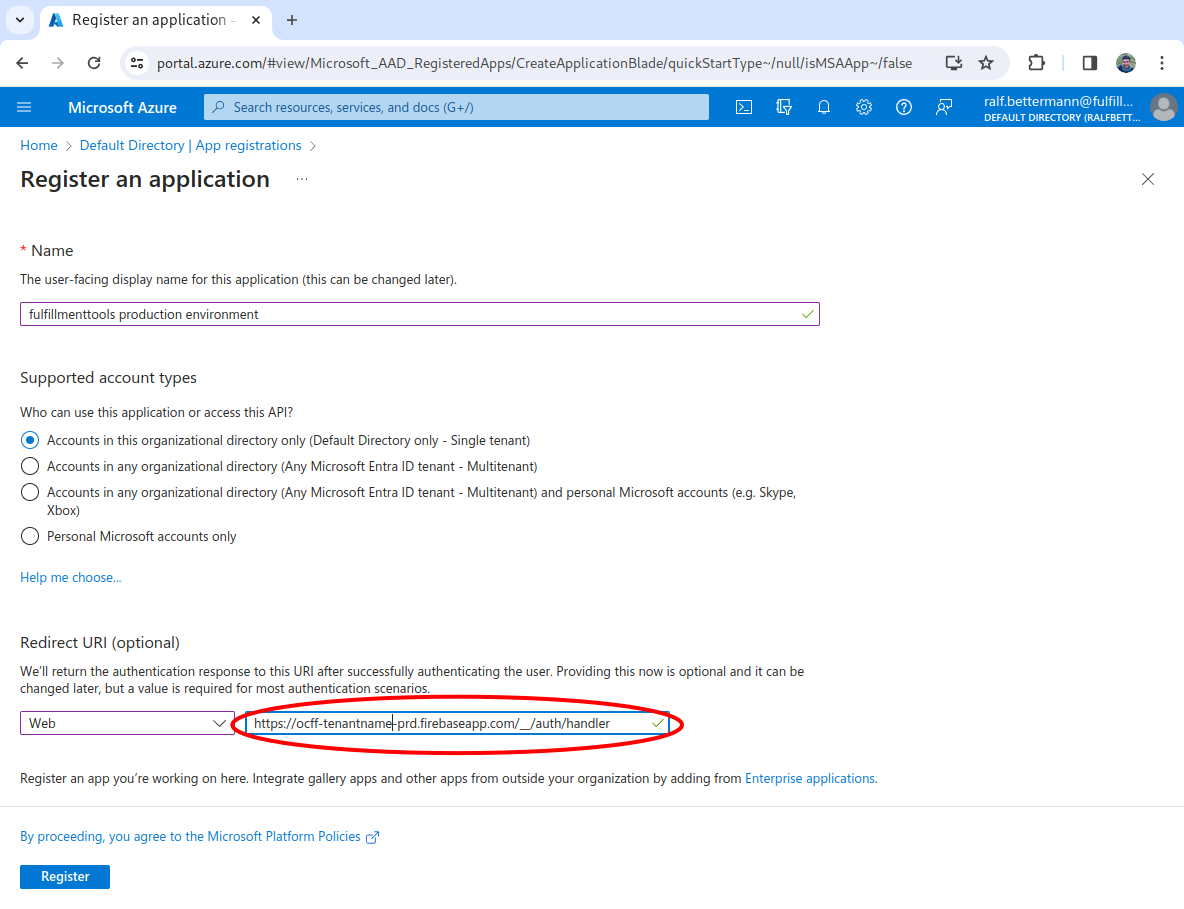

**Input the details for the app**
Input a name (for example, fulfillmenttools production environment), leave the supported account types as is, then input a **Redirect URI.** This has to follow the pattern: `https://ocff--.firebaseapp.com/__/auth/handler`. For example, `https://ocff-myproject-prd.firebaseapp.com/__/auth/handler`. Then click the **Register** button.
{% hint style="info" %}
A separate app registration must be created for each fulfillmenttools environment (for example, one for pre-production and one for production).
{% endhint %}
{% endstep %}
{% step %}
**Add two more redirect URIs**

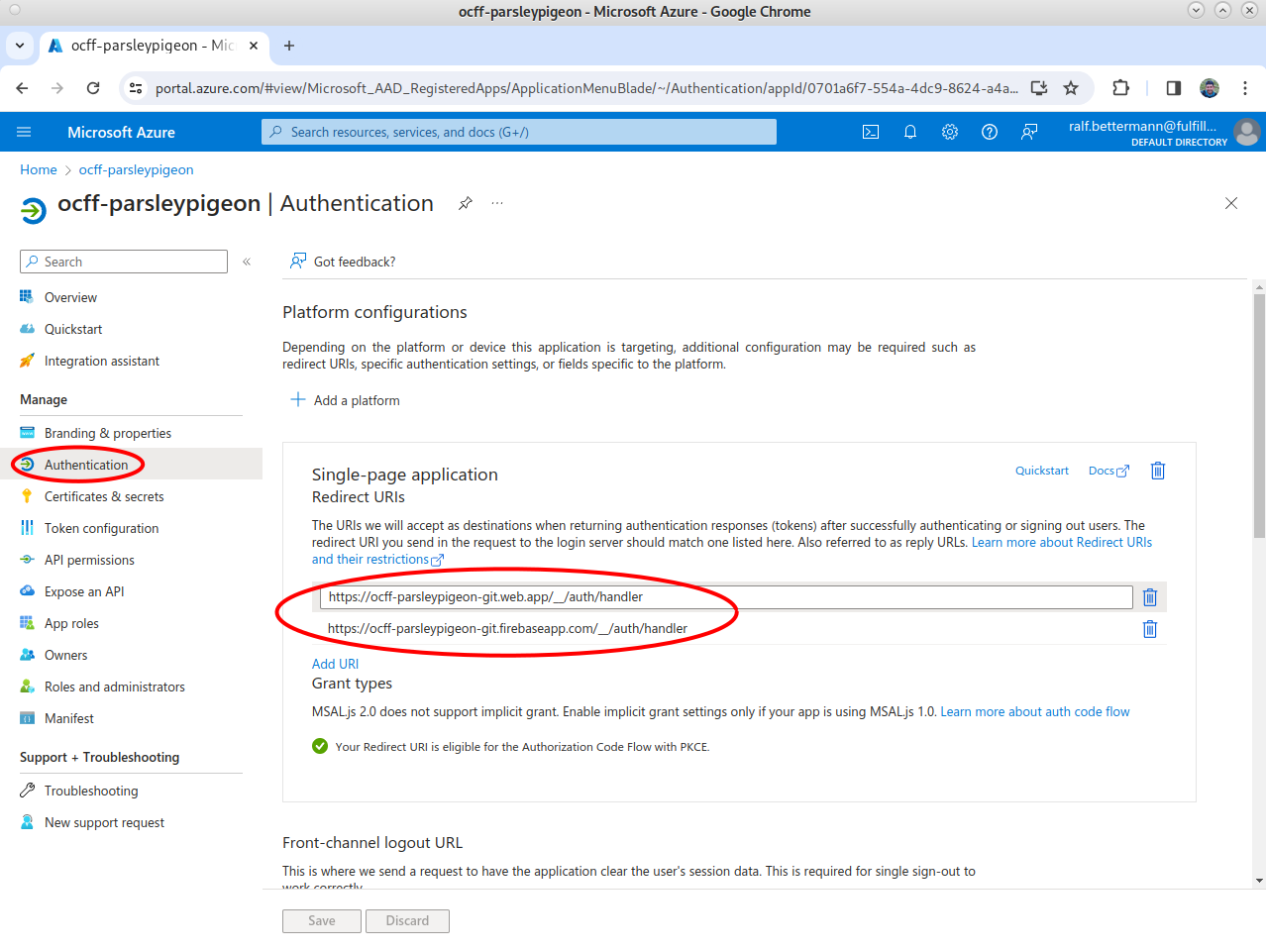

Select **Authentication** in the left-hand navigation, then select **Add URI**, and input a second URI. This has to follow the pattern: `https://ocff--.web.app/__/auth/handler`. For example, `https://ocff-myproject-prd.web.app/__/auth/handler`.
Select **Add URI** again, and input a third URI. This has to follow the pattern: `https://pick--.web.app/__/auth/handler`. For example, `https://pick-myproject-prd.web.app/__/auth/handler`.
Then, click **Save**.
{% endstep %}
{% step %}

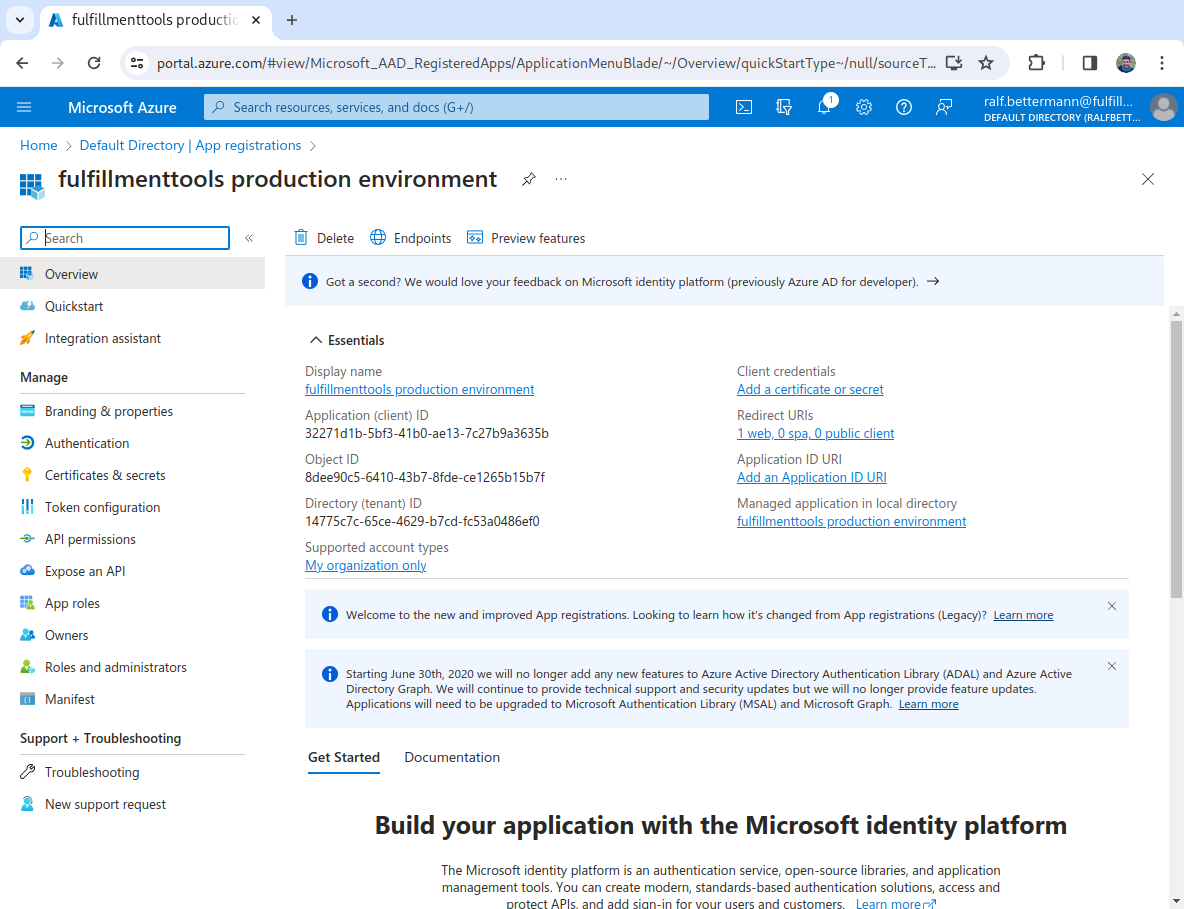

**Copy the Directory and Application IDs**
The OAuth application was successfully created. You'll be shown a landing page with the general information about the set up. You need to copy the **Directory (tenant) ID** and the **Application (client) ID**. These needs to be supplied to fulfillmenttools via API (we'll go through this in a later step).
{% endstep %}
{% step %}
**Activate the ID and access tokens**

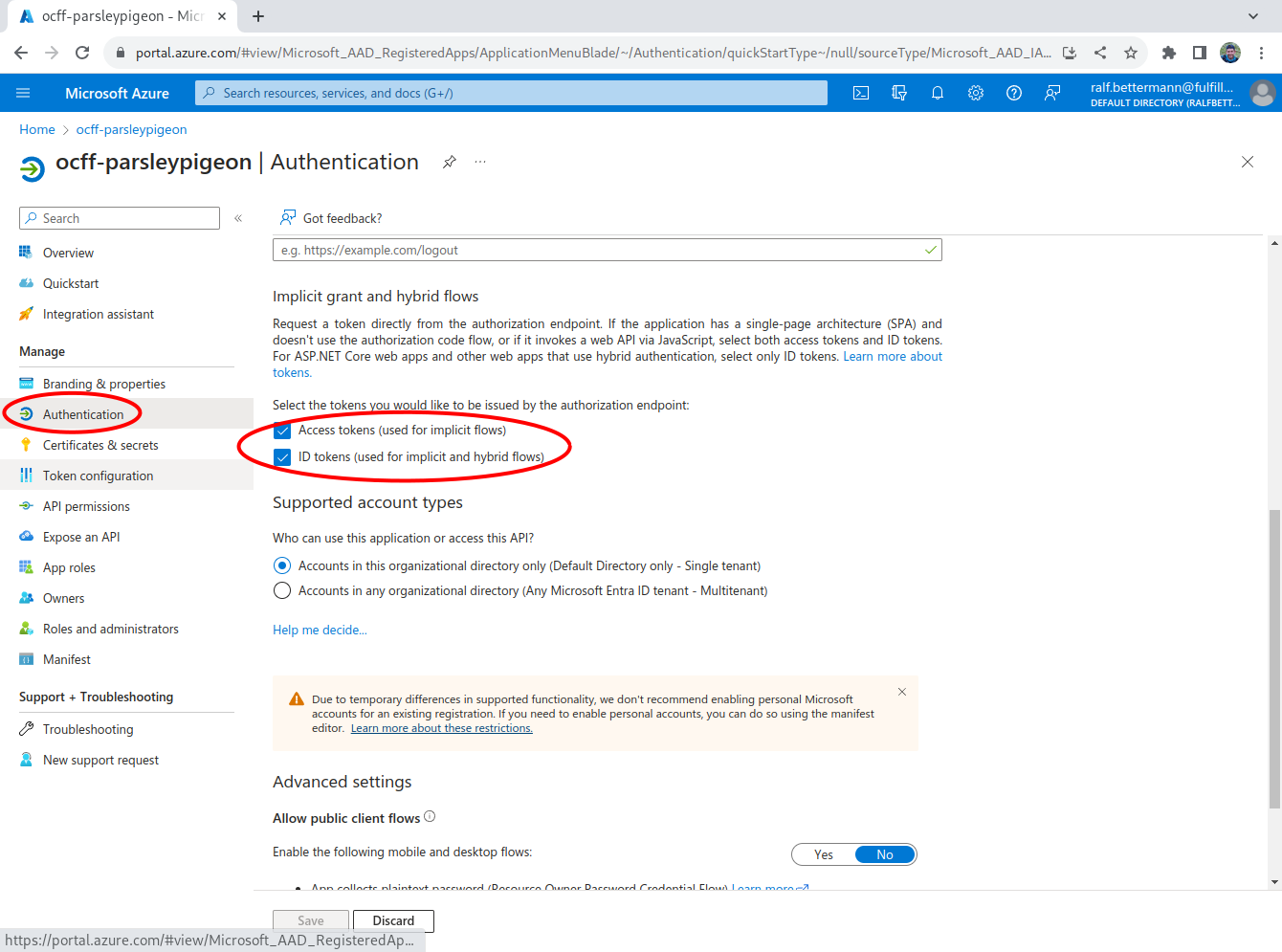

Select **Authentication** in the left-hand navigation, scroll down the page, and check the check boxes for **Access tokens** and **ID tokens**. Then, click **Save**.
{% endstep %}
{% endstepper %}
Now we have everything set up for the main connection, we can create the app roles.
## **Create app roles**
We need to create app roles that correspond to the fulfillmenttools roles. To do this, follow the steps below.
{% stepper %}
{% step %}
**Start the creation process**

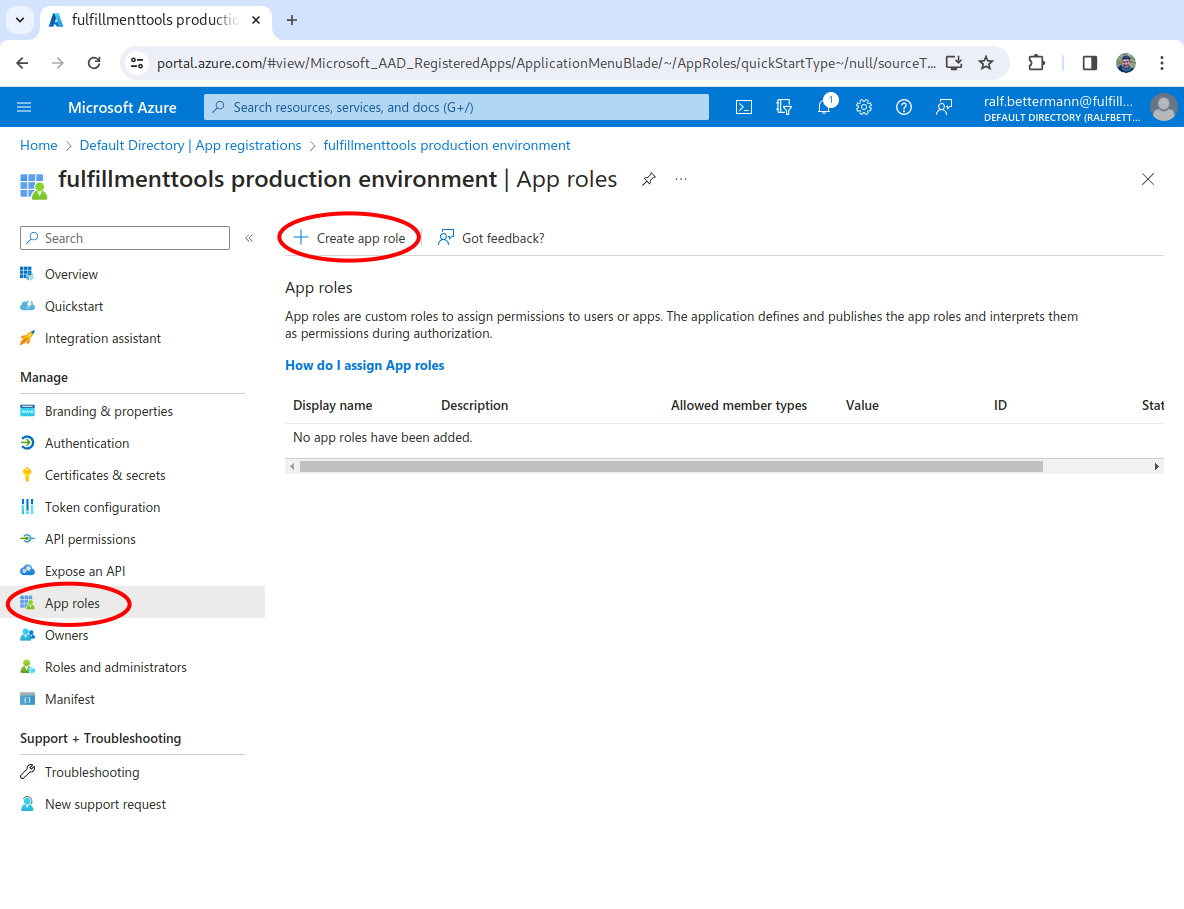

In the left-hand navigation, select **App roles**. Then, click the **Create app role** button.
{% endstep %}
{% step %}
**Create the default fulfillmenttools roles**

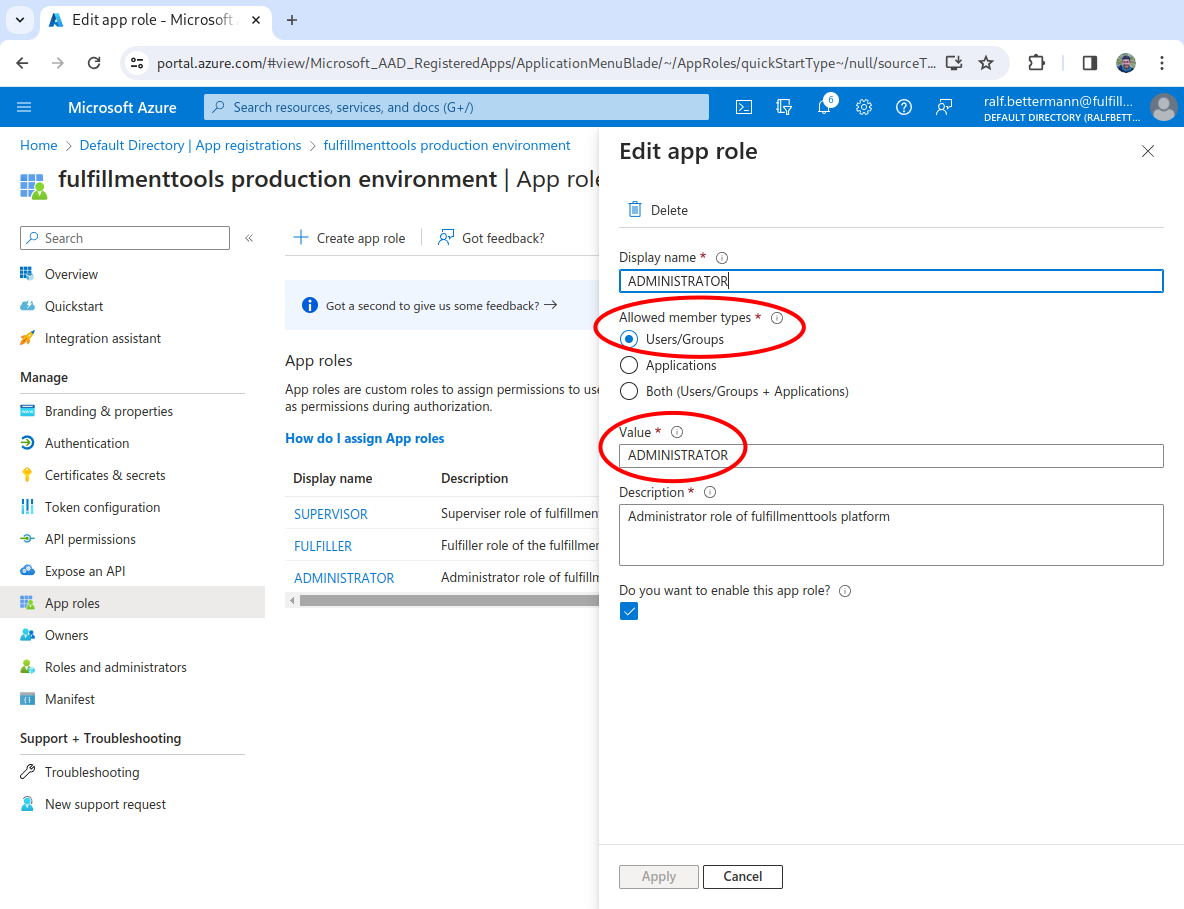

Input the **Display name** of `ADMINISTRATOR`, select **Users/Groups** as the **Allowed member types**, input a **Value** of `ADMINISTRATOR`, input a **Description** of `Administrator role for fulfillmenttools`, check the **Do you want to enable this app role?** check box, then click **Save**.
Repeat this for `SUPERVISOR` and `FULFILLER`.

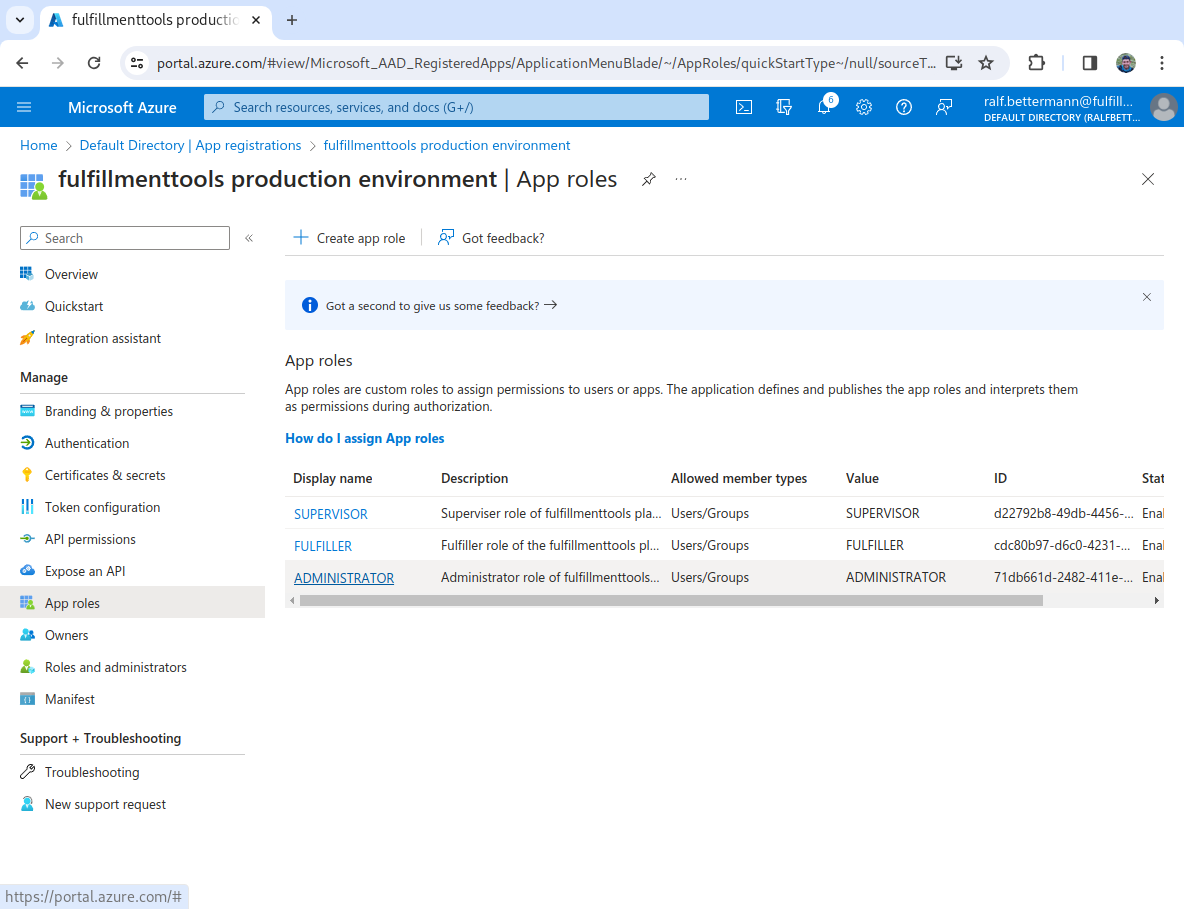

Afterward, the app roles should look similar to this:
{% endstep %}
{% endstepper %}
{% hint style="info" %}
If you're using [custom roles](/documentation/backoffice/network-view/users-roles-and-permissions.md#custom-roles), you'll also need to create these.
{% endhint %}
Now we've created the roles, we can assign users or groups to the roles.
## **Linking app roles to users/groups**
{% hint style="info" %}
The official documentation can be found in the [Assign users and groups to roles](https://learn.microsoft.com/en-us/entra/identity-platform/howto-add-app-roles-in-apps#assign-users-and-groups-to-roles) article.
{% endhint %}
There are two options to assign roles, either add individual users to roles or assign groups to roles.
{% stepper %}
{% step %}
**Navigate to Enterprise applications**

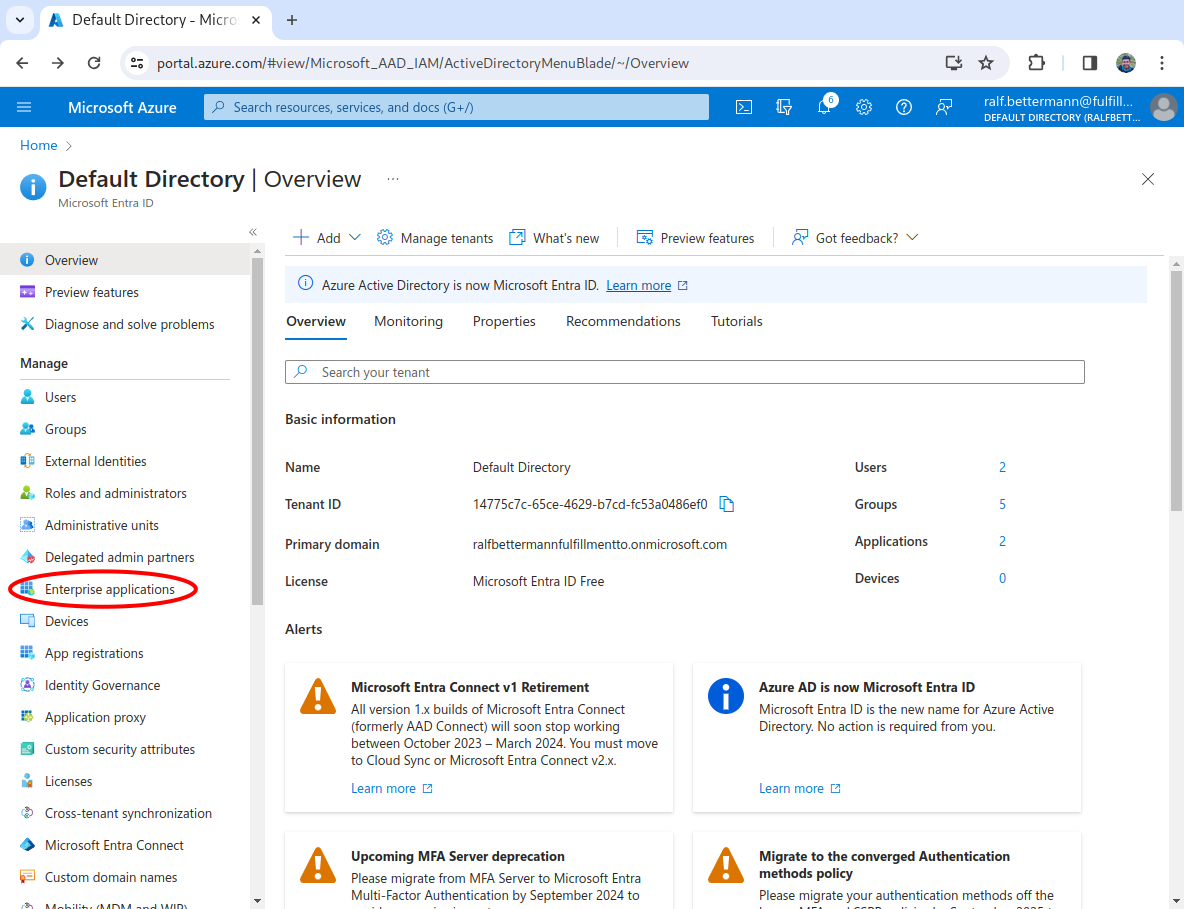

From the landing page of the application, select **Enterprise applications** from the left-hand navigation.
{% endstep %}
{% step %}
**Select the app created earlier**

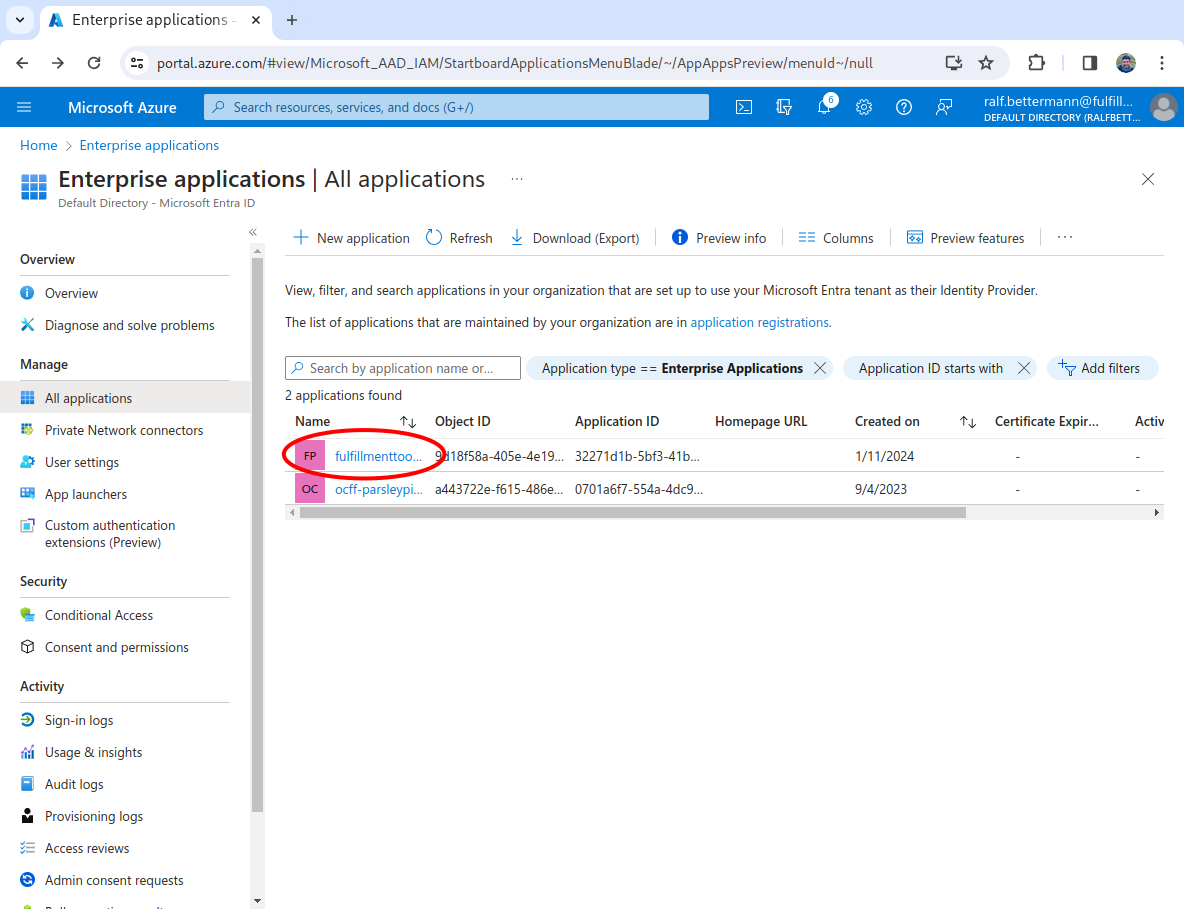

From the application list, click on the appplication you created at the beginning of this article.
{% endstep %}
{% step %}
**Select Assign users**

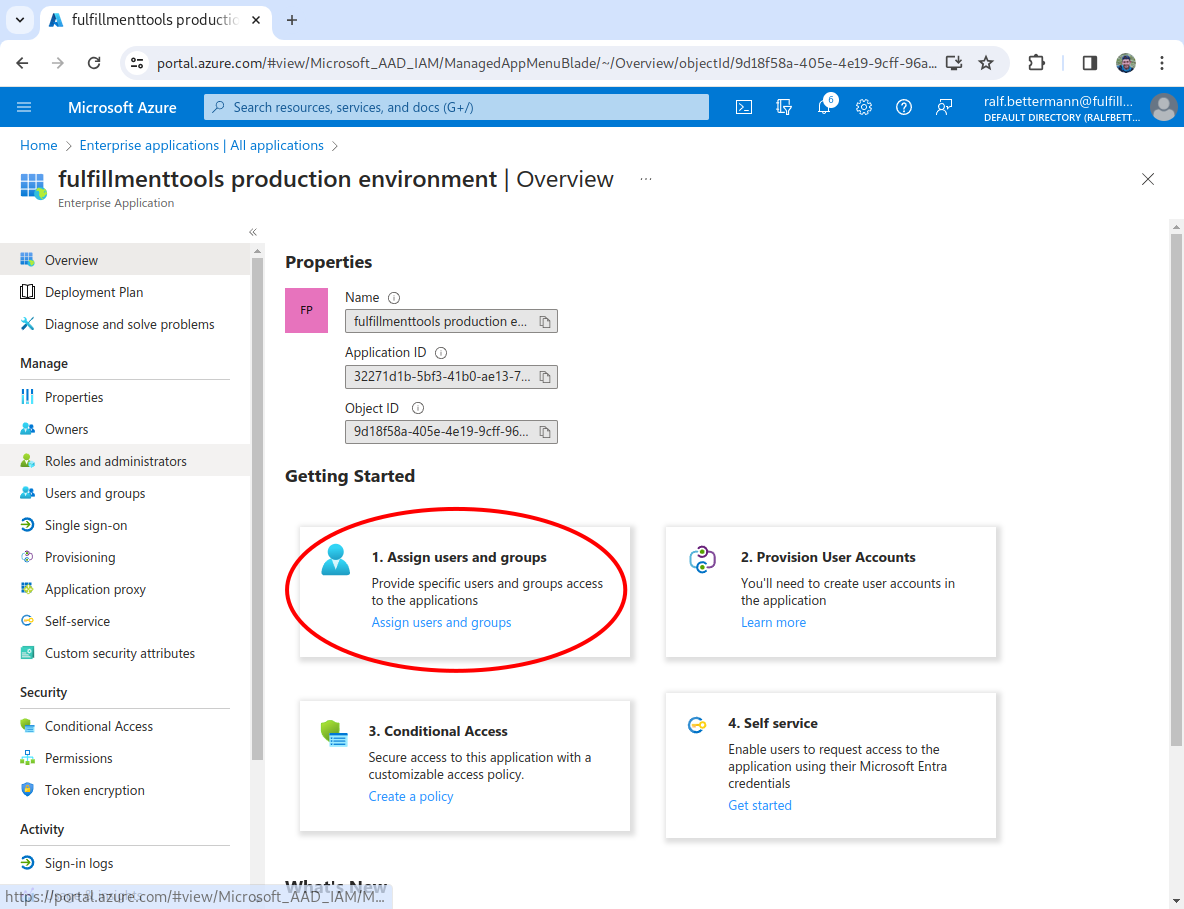

In the **Getting started** section, select **1. Assign users and groups**.
{% endstep %}
{% step %}
**Add users or groups**

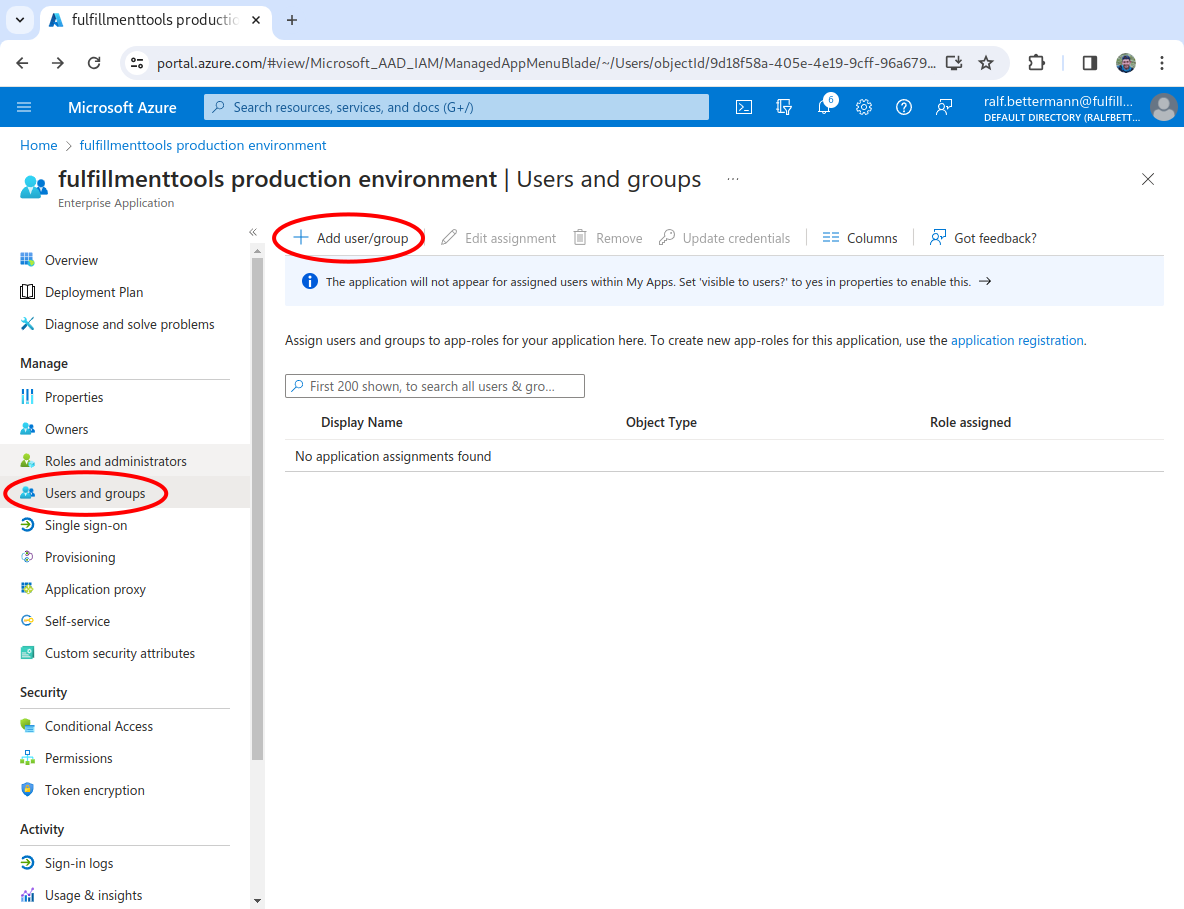

Click the **Add user/group** button, then select a user, and assign a role to that user. You can also do this for user groups.
{% hint style="info" %}
In a production environment, always add users, and don't assign groups.
{% endhint %}
You can change a users role at any time.
{% hint style="warning" %}
Once a user's role has been changed, this won't take effect within fulfillmenttools clients until the user has logged out and logged in again.
{% endhint %}
{% endstep %}
{% endstepper %}
## **Adding (facility) groups to the token**
You can create an Entra ID group to align to a [facility group](/documentation/getting-started/facilities/facility-groups.md). Model the assigned facilities to a user using Entra ID groups.
{% stepper %}
{% step %}
**Create a token configuration**

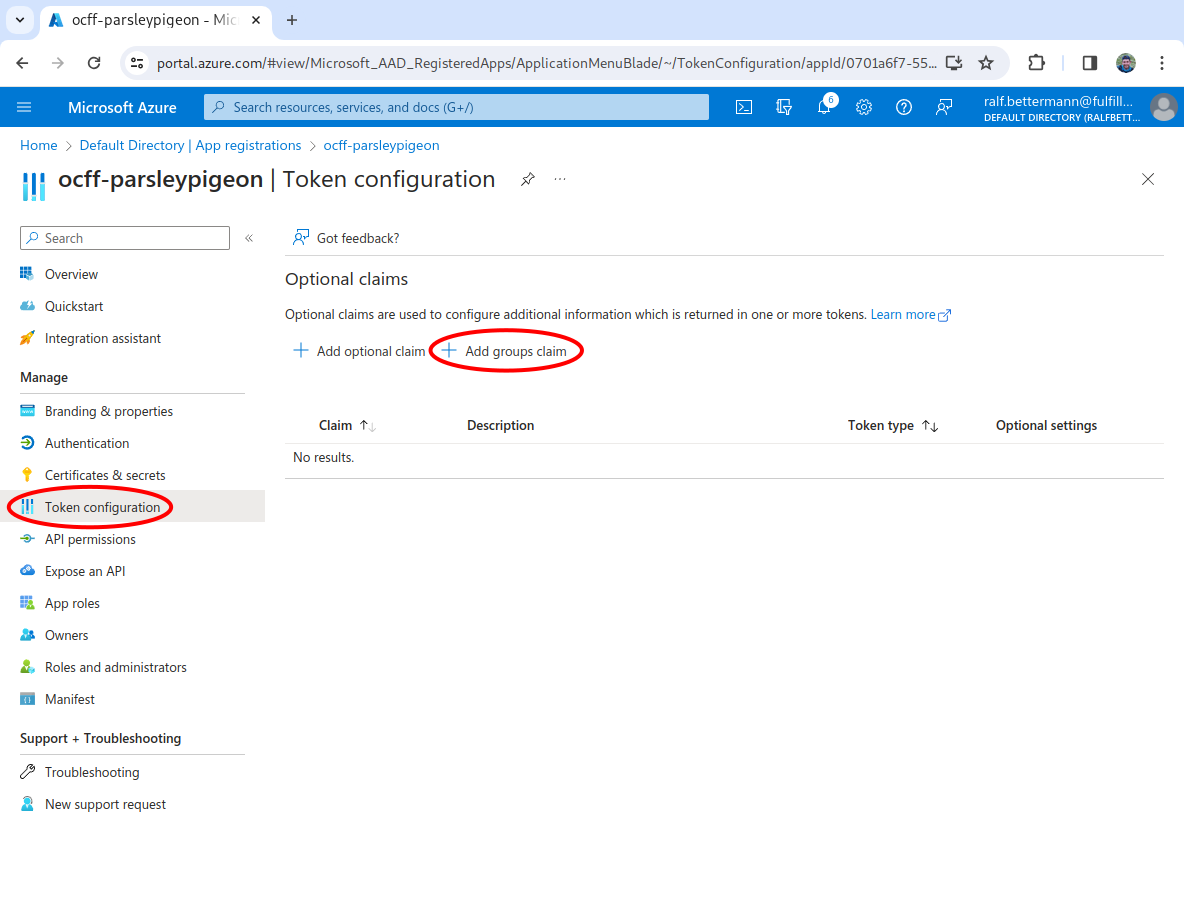

From the App registrations screen, select **Token configuration** from the left-hand navigation and then click the **Add groups claim** button.
{% endstep %}
{% step %}
**Add groups claim**

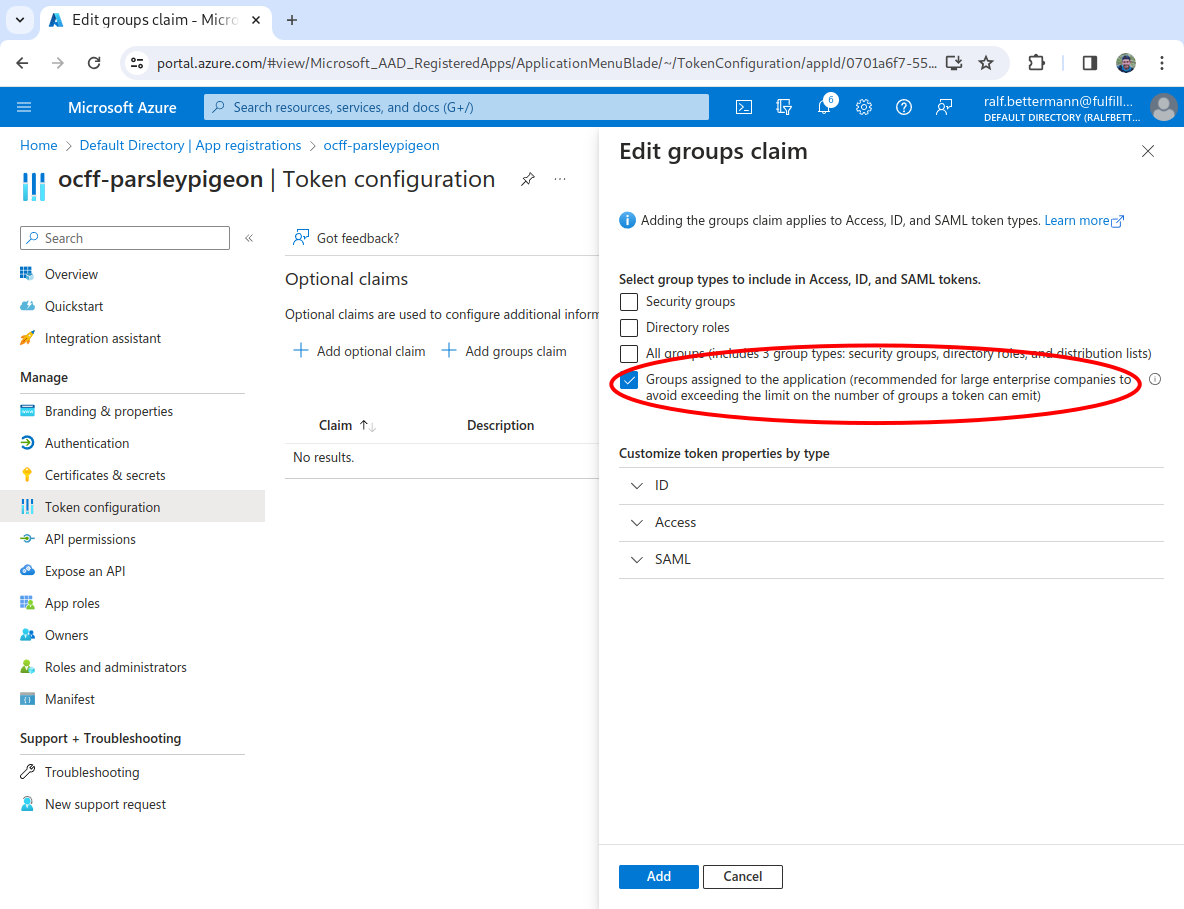

Click the check box next to Groups assigned to the application, then click the **Add** button.
To change the groups assigned to the application, select the application from the Enterprise applications list. Select **Users and Groups** and then **Add user/group**. Select the group(s) which should be added to the application from Users and Groups.
{% endstep %}
{% endstepper %}
## **Adding optional claims to the token**
You can also add optional claims to add user information like first name and last name into the token.
{% stepper %}
{% step %}
**Create a token configuration**

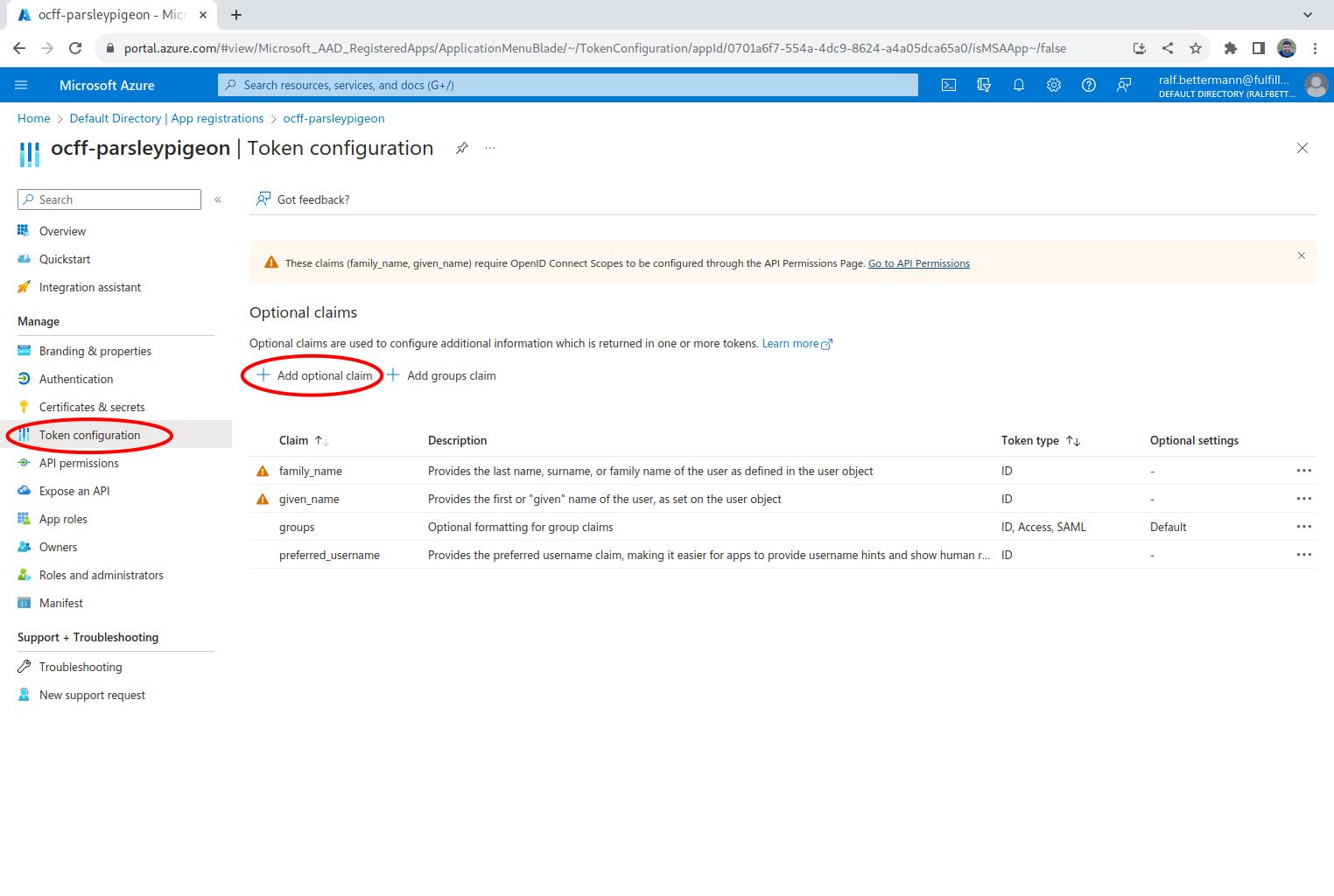

From the App registrations screen, select **Token configuration** from the left-hand navigation and then click the **Add optional claim** button.
{% endstep %}
{% step %}

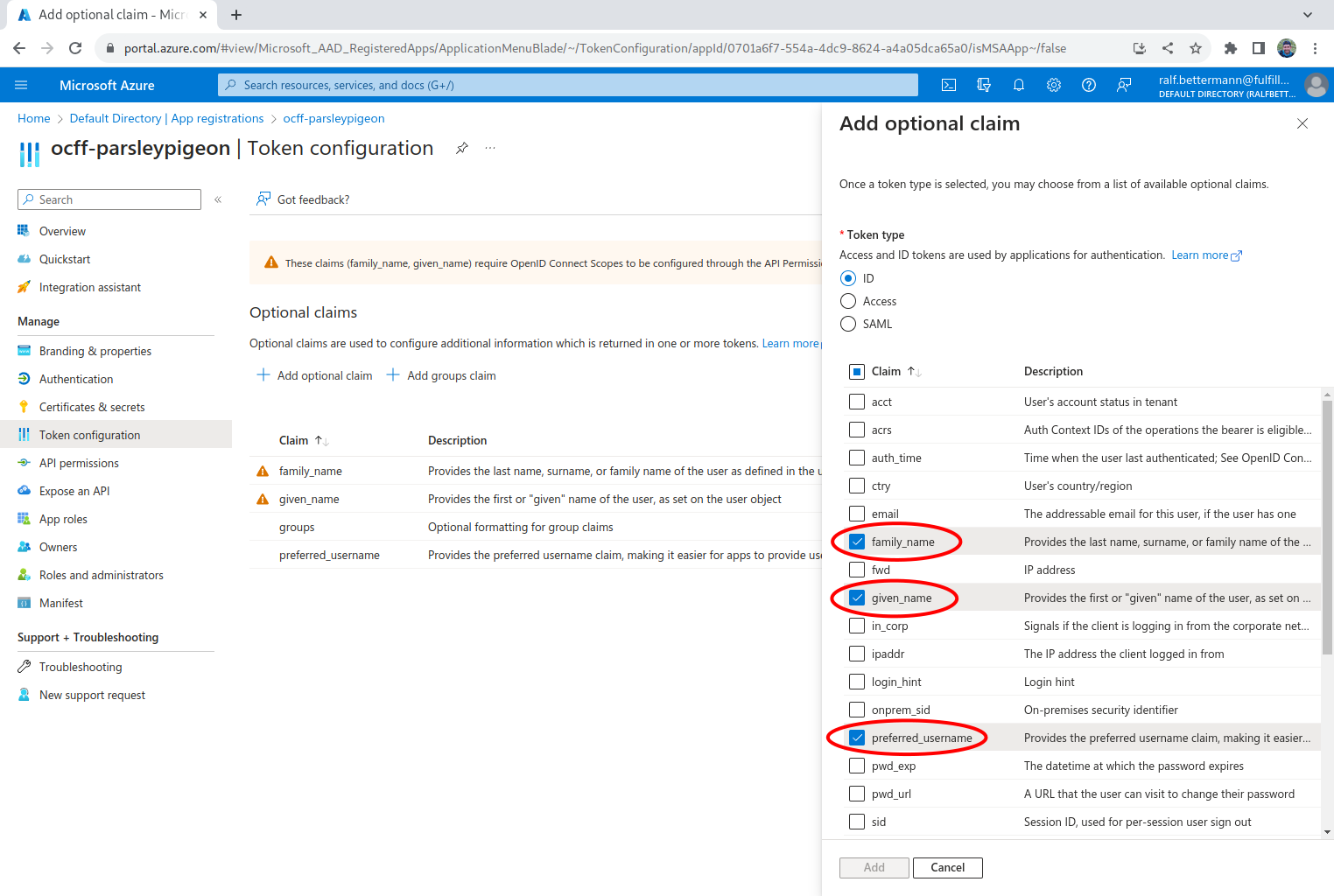

**Select the relevant entities**
Using the checkboxes, check which entities you want to use, we suggest `family_name`, `given_name`, and `preferred_username`, then click the **Add** button.
{% endstep %}
{% endstepper %}
## **Create secret**
Finally, you need to create a secret which needs to be transferred to fulfillmenttools.
{% stepper %}
{% step %}
**Add a secret**

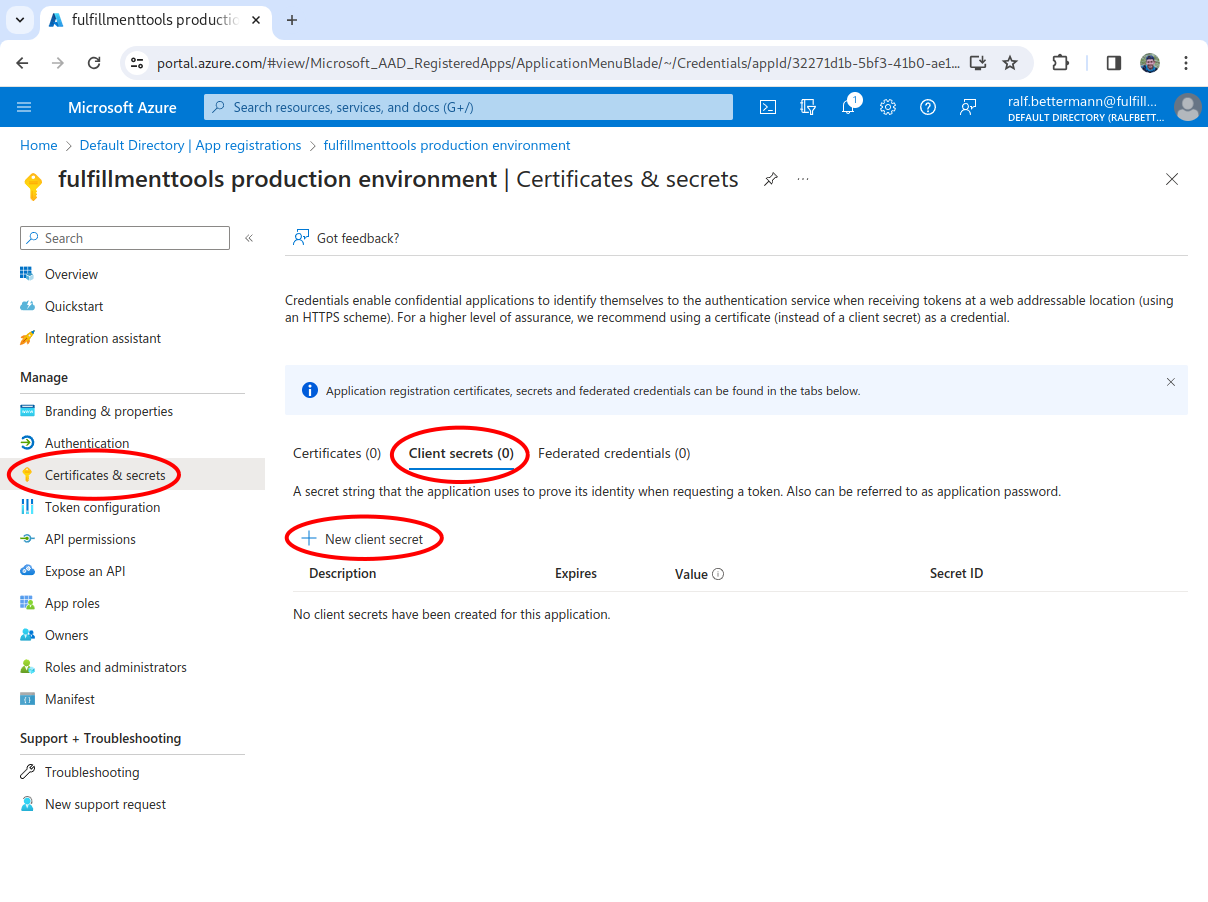

In the left-hand navigation, select **Certificates & secrets**, select the **Client secrets** tab, and then click the **New client secret** button.
{% endstep %}
{% step %}
**Add a description**

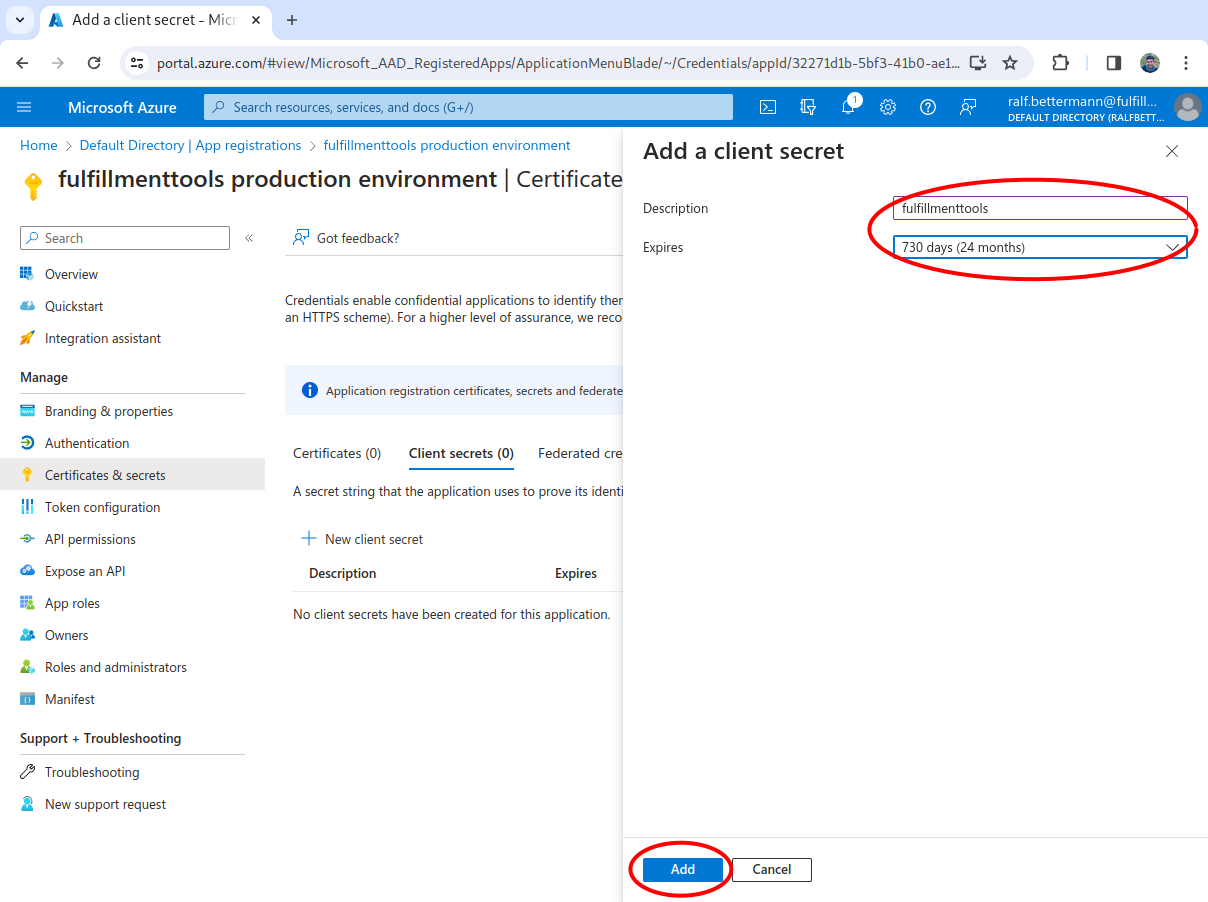

Input a name as the **Description**, select an expiry time, and then click **Add**.
{% endstep %}
{% step %}
**Copy the secret values**

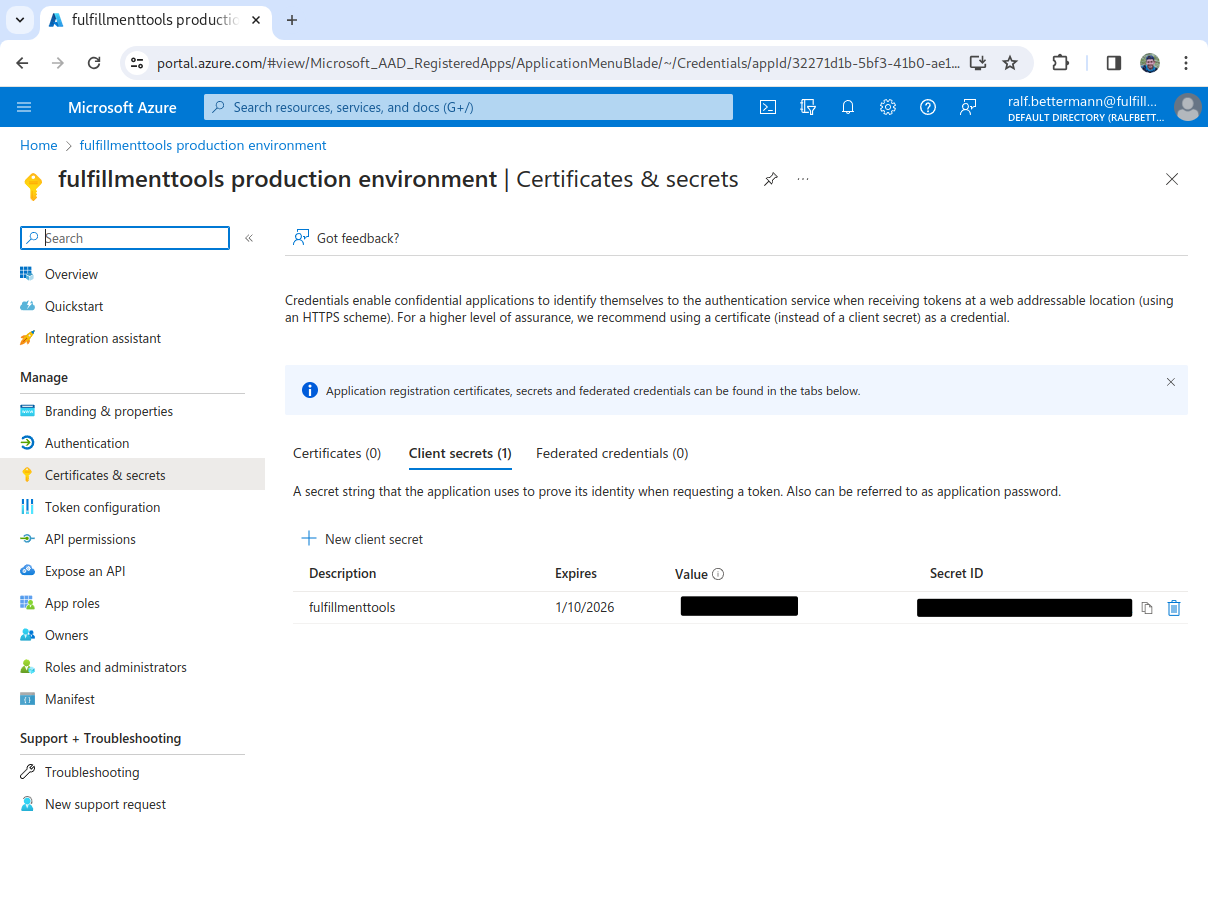

Copy the **Value** and the **Secret ID** and send them to fulfillmenttools.
{% endstep %}
{% endstepper %}
In summary following information is needed:
* `CLIENT_ID`
* This is the `Application (client) ID` of the Enterprise application in Entra (from step 4 in [Create app registration](#create-app-registration))
* `CLIENT_SECRET`
* This is the value of the secret created in the last step (from step 3 in [Create secret](#create-secret))
* `IDP_GROUP_ID`
* ID of the Entra group that should have access to one or more facilities (if you're using facily groups)
* `FACILITY_ID_1`, `FACILITY_ID_2`
* ID of the facilities in fulfillmenttools that this group should have access to
* `TENANT_ID`
* This is the `Directory (tenant) ID` of the Enterprise application in Entra (from step 4 in [Create app registration](#create-app-registration))
## Custom parameters for Microsoft Entra ID/Azure Active Directory
When using Microsoft Entra ID/Azure Active Directory IdP, add the following custom parameter to make sure that only users of the specific Microsoft Entra ID tenant can log in:
```json
{
...
"customParameters": [
{
"key": "tenant-name",
"value": "azure-tenant-id"
}
]
}
```
To register the OIDC provider to the fulfillmenttools platform, the following call needs to be utilized:
```http
POST https://{YOUR_TENANT_NAME}.api.fulfillmenttools.com/api/configurations/oidcproviders
```
```json
{
"name": "MS Entra",
"status": "ACTIVE",
"clientId": "{CLIENT_ID}",
"clientSecret": "{CLIENT_SECRET}",
"issuer": "https://sts.windows.net/{TENANT_ID}",
"customParameters": [
{
"key": "tenant-name",
"value": "azure-tenant-id"
}
],
"assignedGroups": [
{
"group": "{IDP_GROUP_ID}",
"facilityRefs": [
"{FACILITY_ID_1}",
"{FACILITY_ID_2}"
]
}
]
}
```
---
